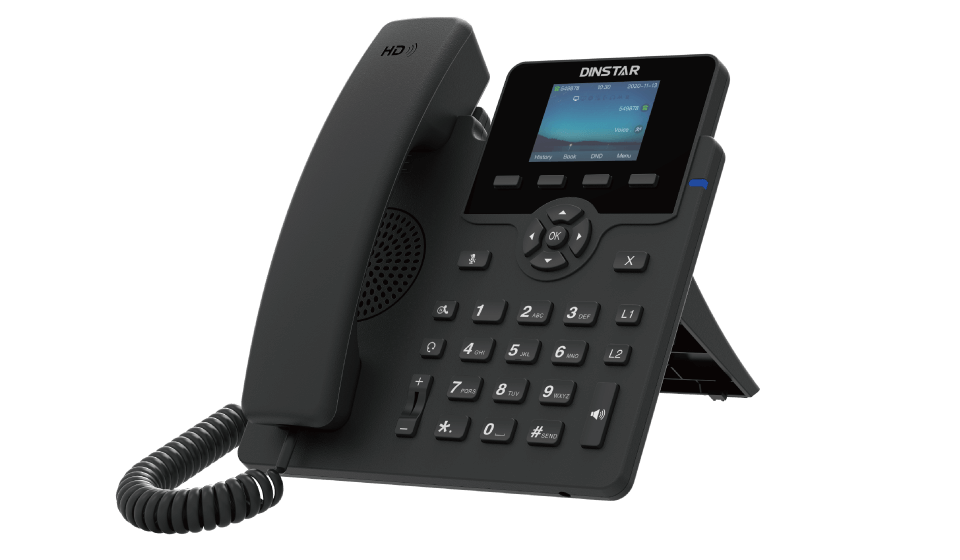

Dinstar C62U/C62UP

Color Screen IP Phone

The C62U/C62UP is a high-performance entry-level IP phone featuring a 2.4″ high-resolution color TFT display with backlighting, enhancing visual information presentation. The freely programmable multicolor function keys offer users great versatility, allowing each key to be configured for one-touch telephony functions like speed dial and busy lamp field.

Built on the SIP standard, the C62U/C62UP is tested for high compatibility with leading IP telephony systems and equipment, ensuring comprehensive interoperability. This makes it easy to maintain, highly stable, and capable of quickly offering a wide range of services.

Download Datasheet

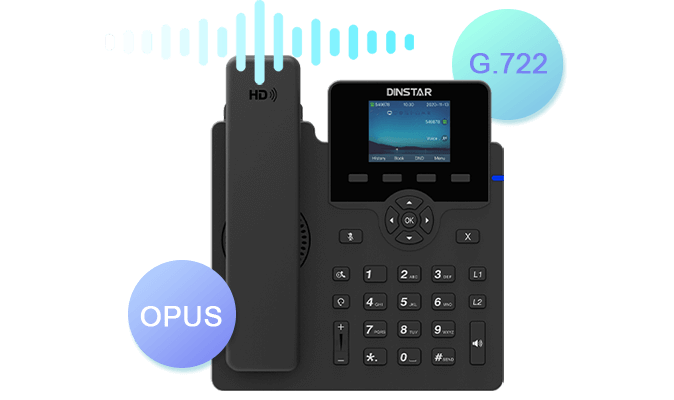

High-definition Audio

  • Full duplex speaker and microphone
  • Digital signal processor (DSP)
  • Wideband codec: G.722, OPUS-WB
  • Echo cancellation/Dynamic jitter
  • Voice activity detection(VAD)
  • Comfort noise generation(CNG)

5-way Conferences

C62 Series IP Phone facilitates 5-way audio conferencing, allowing the conference organizer to invite up to 4 participants. This enhances collaboration across various departments or organizations, improving efficiency.



Support 3rd-party EHS Headsets

C62 Series IP Phone is compatible with third-party EHS wireless headsets (Plantronics, Jabra, and Sennheiser), making it an ideal choice for call center professionals. This feature allows employees to multitask while engaged in audio communication, significantly enhancing overall work efficiency.

Easy Management

  • Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
  • Intuitive web GUI
  • Dinstar NMS (Network Management System)
  • Configuration via device button
  • Software upgrade via web
  • Network capture

Features

  • Color 2.4″ High resolution screen (240×320)
  • FTP/TFTP/HTTP/HTTPS/PnP
  • Selectable Ring Tones
  • NTP/Daylight saving time
  • Software upgrade via web
  • Configuration backup/restore
  • DTMF: In‐Band, RFC2833, SIP INFO
  • Wall Mountable
  • IP Dialing
  • Redial, Call Return
  • Blind/attendant Transfer
  • Call hold, Mute, DND
  • Call Forward
  • Call Waiting
  • SMS, Voicemail, MWI
  • 2xRJ45 10/1000M Ethernet Ports
